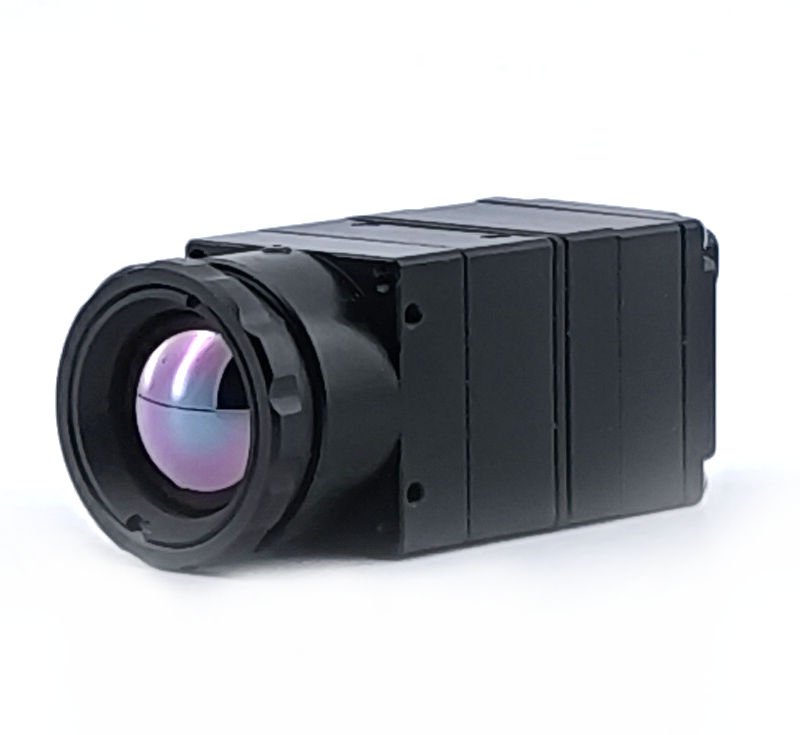

High Resolution Compact USB Thermal Camera Module – GTCM300K50UC
Ab
1.800,00$
FEATURES
- User-Programmable Module
- Uncooled Ceramic-Packaged VOx infrared detector
- Spectral Band: 8μm ~14μm
- Thermal Sensitivity(NETD): ≤40mK @25°C
- Frame Rate: 50fps for 300K(640(W)x512(H))
- UVC support, Plug & Play for Windows and Linux
Anzahl
Discount Information
**Discount for Larger Orders**
- Buy 10+ units and enjoy a special price of $1450 per item
- Buy 50+ units and enjoy a special price of $1200 per item
- Buy 200+ units and enjoy a special price of $1050 per item
Product Info
- Deliver Time: Available, 7~21 Days
- Product ID: GTCM300K50UC
Technical Specs
The TCM300K50UC infrared thermal camera module is a high-performance 640×512 uncooled imaging solution designed for versatility and reliability. With its compact size, lightweight design, and low power consumption, it integrates an advanced infrared detector with a new image processing chip to deliver clear thermal imaging under the most challenging conditions—including night, strong light, low light, fog, smoke, light rain, snow, and haze—helping identify potential dangers in advance and greatly enhancing driving safety.
This module is programmable with full tech support, making it ideal for integrators and developers who require flexible thermal imaging solutions. It also supports customizable FOV lenses, allowing users to tailor the field of view to their specific applications. With robust thermal performance and modular flexibility, the TCM300K50UC infrared thermal camera module is the perfect choice for automotive, security, industrial, and AI vision systems.
Technical Information
| Product ID | TCM300K50UC |
| Sensor | Uncooled Ceramic-Packaged VOx infrared detector |
| Spectral Band | 8μm ~ 14μm |
| Image Pixels & Resolution | 640(W) x 512(H) |
| Pixel Pitch | 12μm |
| Frame Rate | 50fps @ 640x512 |
| Thermal Sensitivity (NETD) | ≤40mK @ 25°C |
| Data Interface | UVC (USB 2.0) |
| Operating Temperature | -40°C ~ +80°C |
| Operating Voltage | USB 5V (Range: 4V ~ 5.5V) |
| Power Consumption | ≤1.2W |
| Dimensions | 20mm x 20mm x 38.2mm |
| Weight | ≤26g (exclude lens) |
| Lens Mount | Varies by lens option |
| Field of View(D) | 57° / 41° / 29° |
